Lock Stitch Computerized Multi Needle Quilting Machine For Bedding Sofa Cover

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China

Brand Name : YUTENG

Certification : CE Certificate

Packaging Details : Film packaging

Supply Ability : 300 Set/Sets per Year

Price : $10,000.00 - $40,000.00/sets

Applicable Industries : Factory Use

Showroom Location : Viet Nam, South Korea

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : PLC, Motor

Condition : New

Max Sewing Speed : 800 RPM

Max Sewing Thickness : 25mm

Number of Head : Multi Needle

Moving Style : Roller

Voltage : 380V/220V

Power : 5.5KW

Dimension(L*W*H) : 4900*1200*1800(mm)

Weight : 4200kg

Warranty : 1 Year

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Viet Nam, Saudi Arabia

After-sales Service Provided : Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service

Port : Shenzhen/Guangzhou

Contact Now

Lock Stitch Quilting Machine Bedding Sofa Cover Quilt Machine, Computerized Lock Stitch Multi Needle Quilting Machine

1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.

Technical parameters :

Model

YGB96-2-3

YGB96-3-5

YGB96-3-6

Dimension(L*W*H)

4900*1200*1800(mm)

4900*1200*1800(mm)

900*1200*1800(mm)

Quilting Width

2450mm

2450mm

2450mm

Needle rows

2

3

3

Space between needle rows

3"

3"+2"

3"+3"

Space between needle

25.4mm

25.4mm

25.4mm

X-axis movement displacement

254mm

304.8mm

304.8mm

Thickness of quilting

≤25mm

≤25mm

≤25mm

Stitch length

2-6mm

2-6mm

2-6mm

Speed of operation(m/hour)

20-120(m/hour)

20-120(m/hour)

20-120(m/hour)

Model of needle

16# or 19#

16# or 19#

16# or 19#

Shuttle model

7 or 10

7 or 10

7 or 10

Quilting Speed(r/min)

300-800(RPM)

300-800(RPM)

300-800(RPM)

Voltage(AC)

380V/50HZ,3-Phase

220V/60HZ,3-Phase

380V/50HZ,3-Phase

220V/60HZ,3-Phase

380V/50HZ,3-Phase

220V/60HZ,3-Phase

Total power

5.5KW

5.5KW

5.5KW

Gross weight

4200kg

4200kg

4200kg

Purpose :

It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

Lock Stitch Computerized Multi Needle Quilting Machine For Bedding Sofa Cover

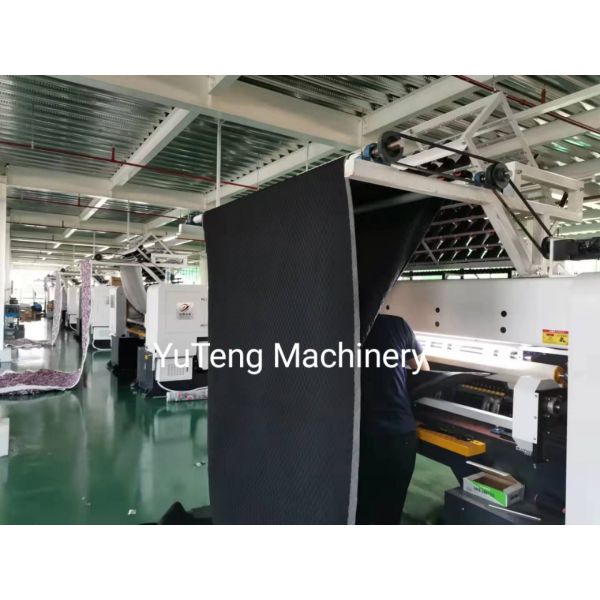

Quilting Machine Pictures :

Lock Stitch Computerized Multi Needle Quilting Machine For Bedding Sofa Cover

Certificate :

Lock Stitch Computerized Multi Needle Quilting Machine For Bedding Sofa Cover

Company pictures :

Lock Stitch Computerized Multi Needle Quilting Machine For Bedding Sofa Cover

Our service :

1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.

4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.

6.Can provide quilted fabric samples.
